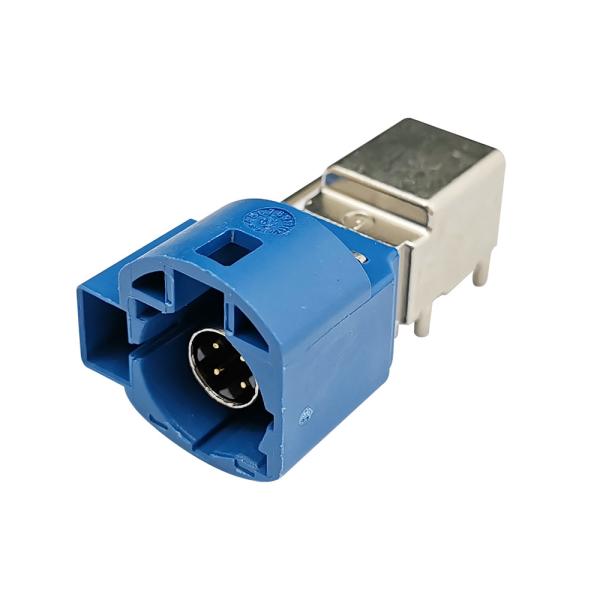

High Speed Data Right Angle Type PCB Mount 4+2 Pin HSD LVDS Cable Connector
Product description:
LEADSIGN offers advanced specialized automotive connectors and wire and cable to meet the demand for high-speed data transmission connections in vehicles.HSD connection system is a high performance, highly shielded data system for low voltage differential signals with a characteristic impedance of 100Ω using shielded twisted pair cable. Designed for the automotive market, HSD can be used in applications such as LVDS cameras, USB and IEEE1394 to meet a variety of needs.
Main Feature:
1. Primary and secondary locking
2. Crimp connection
3. Funnel insertion design on the internal conductor of the jack
4. Plastic dome to protect the plug pins
5. High cable retention force
6. High coding efficiency
7. No risk of contact pin damage
8. Anti-slant plug
Applications:
1.Industrial electronics
2. Telecommunications industry, such as radio base stations
3. Electronic equipment for digital infotainment systems
4.Digital symmetric networks
5.LVDS
6.Ethernet
7.IEEE 1394 (FireWire)
Offer Custom:
We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.
Technical Specifications:
| HSD | |
| Impedance | 100Ω |
| Frequency | DC to 2.0 GHz |
| Return loss | ≥ 20 dB to 1.0 GHz ≥17 dB to 2.0 GHz |
| Test voltage | 250 V rms |
| Working Voltage | 100 V rms |
| Mating cycles | ≥25 |
| Engagement force | ≤60 N |
| Disengagement force | ≥5N |
| Retention force latch | ≥110N |
| Retention force primary lock | ≥80 N |
| Coding efficiency | ≥80 N |
| Temperature range | -40°C to +105°C |
